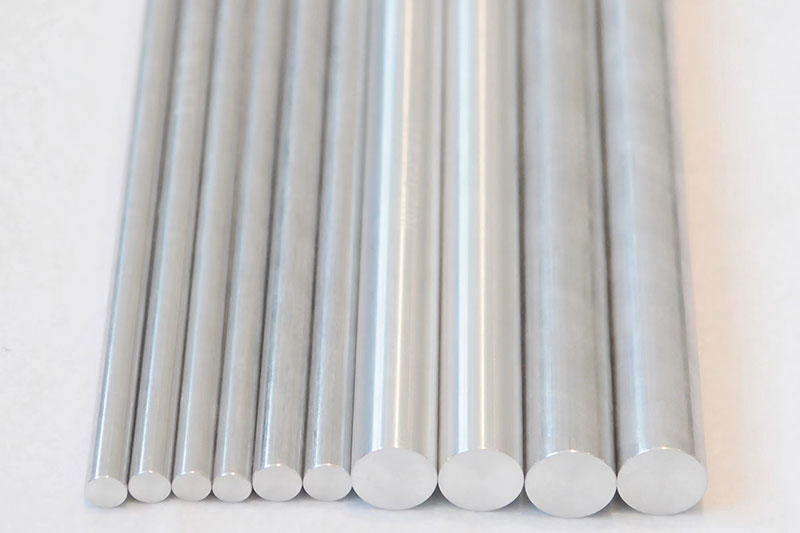

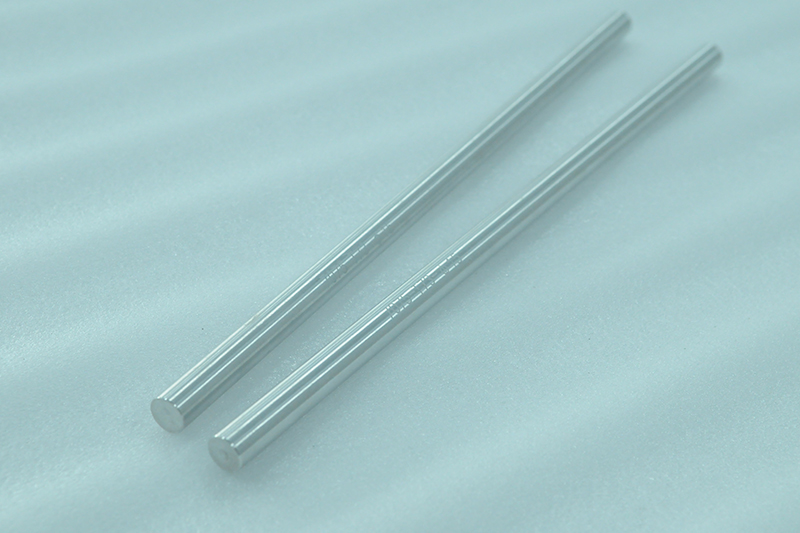

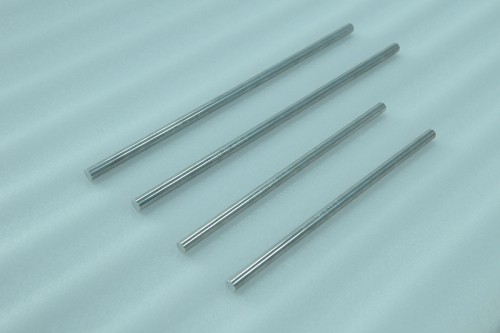

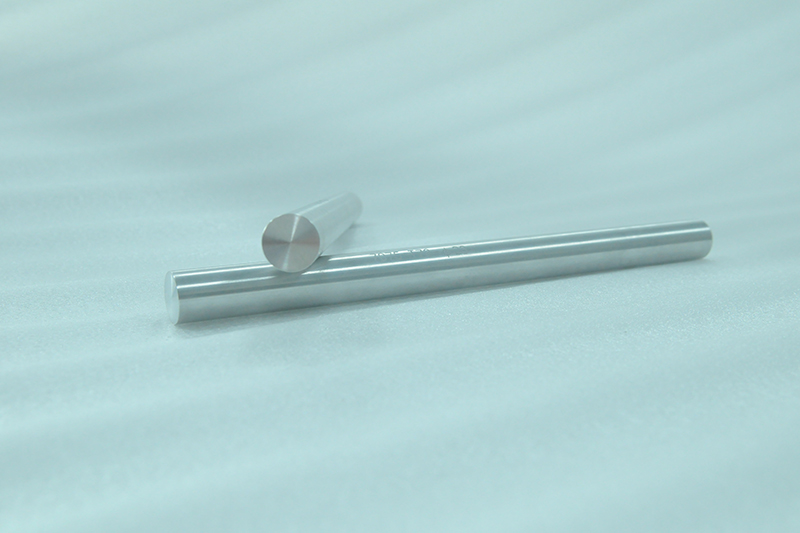

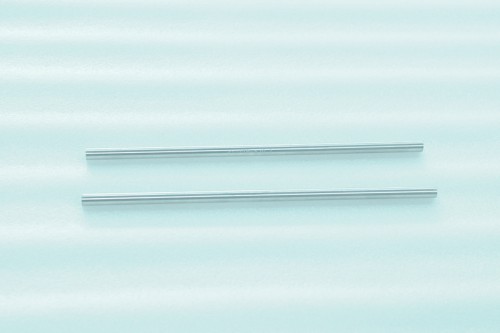

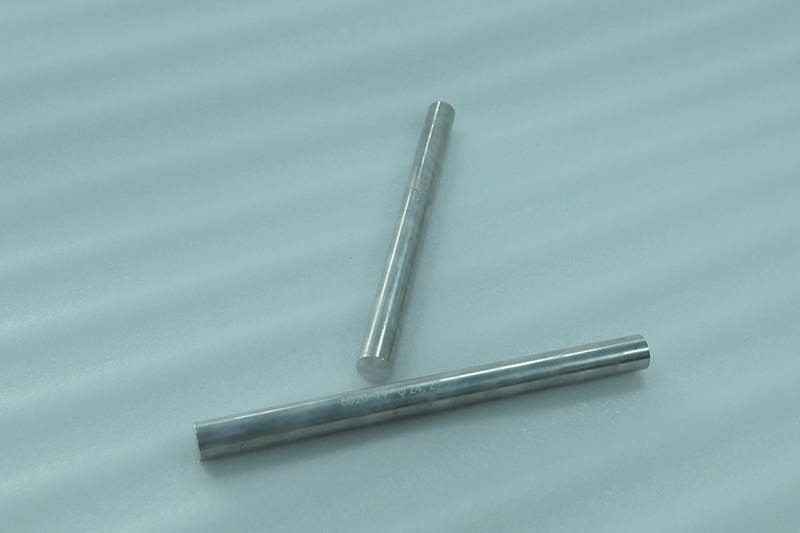

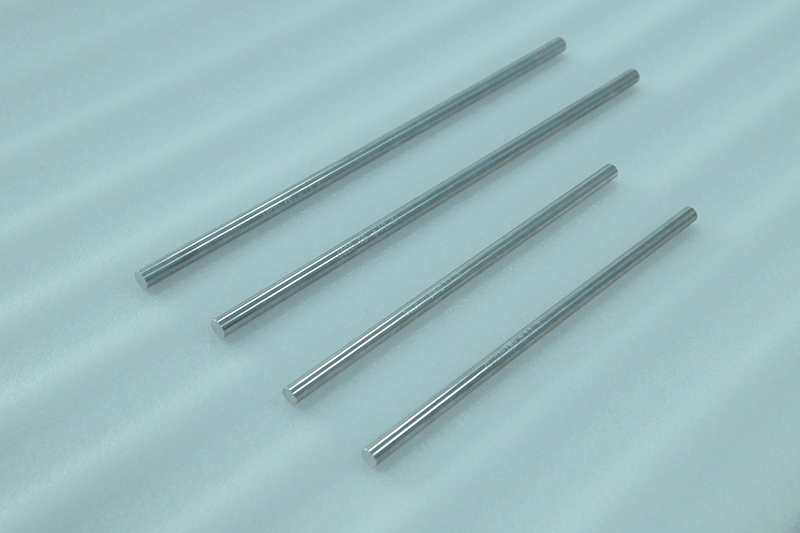

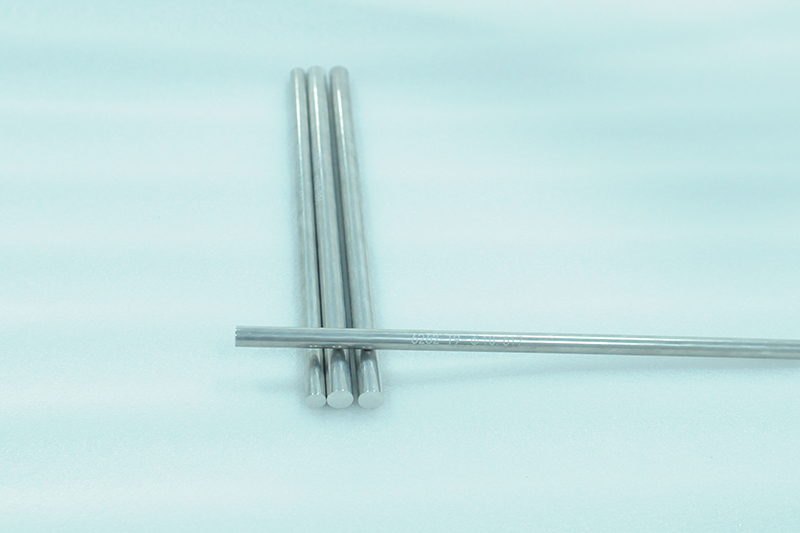

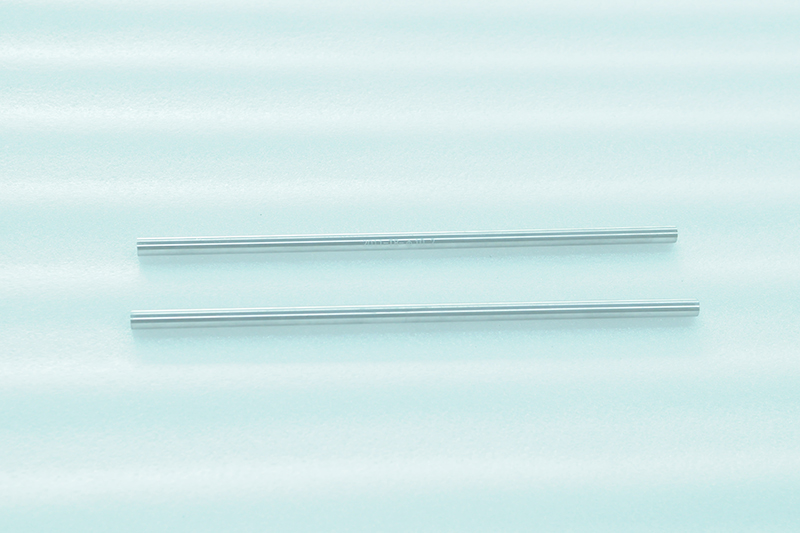

Aluminum Rods

With the experience of producing over 100 thousands aluminum extrusions, RH Group houses an extensive standard shapes die bank for mass production, thus to lower tooling costs. Being an aluminum extrusion manufacturer, RH Group can produce aluminum alloy rods in 2000, 3000, 4000,5000, 6000 and 7000 series, and deliver customized surface treatment and finishing service for our aluminum extrusions used in different applications, such as architecture, industry, electronics.

Quantity of dies: 235 sets
CCD (circumscribing circle diameter): 4mm-180.00mm

Examples

2011-T8 Aluminum Round Rod
6020-T8 Aluminum Round Rod
6020-T9 Aluminum Round Rod
6262-T9 Aluminum Round Rod
7075-T73 Aluminum Round Rod
7075-T79 Aluminum Round Rod

Specifications

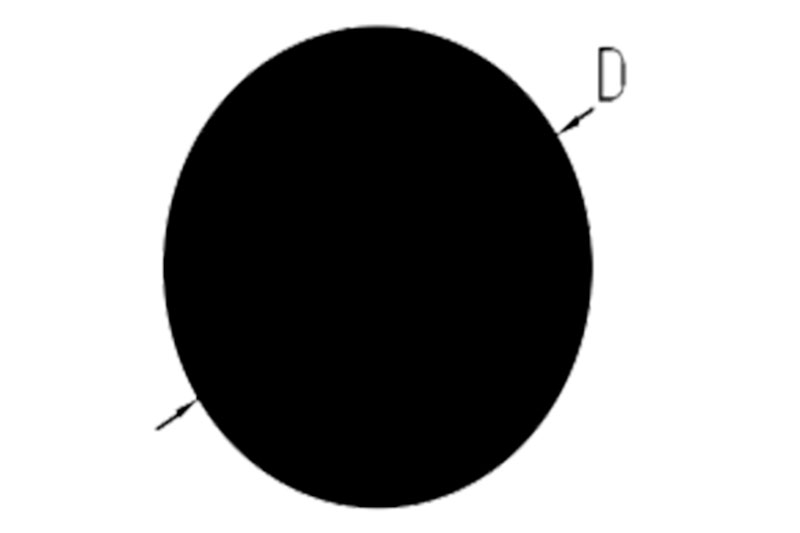

N0.	Part Number	Diameter mm	Weight kg/m
1	RH1648-028	6.7	0.1
2	RH231-067	7.92	0.14
3	RH1507-017	8	0.14
4	RH1648-035	8.38	0.15
5	RH1234-003	9	0.18
6	RH698-124	9.7	0.20
7	RH1201-003	10	0.22
8	RH187-004	10.5	0.24
9	RH1507-020	11	0.27
10	RH1507-114	11.4	0.29
11	RH1507-036	12	0.32
12	RH187-011	12.5	0.34
13	RH1507-115	12.7	0.36
14	RH1545-010	13	0.37
15	RH1648-016	13.5	0.40
16	RH1289-069	14	0.43
17	RH1507-116	14.2	0.44
18	RH1156-003	14.9	0.46
19	RH1545-013	15	0.50
20	RH245-153	16	0.56
21	RH1507-118	16.2	0.58
22	RH1507-143	16.6	0.60
23	RH1507-144	17.5	0.67
24	RH1507-128	18	0.71
25	RH1631-004	18.2	0.73
26	RH1507-035	18.5	0.75
27	RH1507-016	18.6	0.76
28	RH1434-016	18.7	0.77
29	RH1245-001	19	0.80
30	RH1507-052	19.3	0.82
31	RH923-238	20	0.88
32	RH1507-037	21.2	0.99
33	RH1640-002	21.5	1.02
34	RH1507-078	22	1.06
35	RH1507-119	22.2	1.08
36	RH476-006	22.5	1.11
37	RH1507-021	23	1.16
38	RH1275-010	23.5	1.22
39	RH388-026	24.2	1.28
40	RH1545-007	24.8	1.35
41	RH1507-022	25	1.37
42	RH1816-093	25.2	1.39
43	RH1507-015	25.7	1.45
44	RH1648-011	27	1.60
45	RH121-079	28	1.72
46	RH1574-027	29	1.85
47	RH450-002	30	1.98
48	RH985-007	30.5	2.05
49	RH1648-055	31	2.08
50	RH1507-158	32	2.25
51	RH1507-047	32.6	2.34
52	RH1648-017	39	3.35
53	RH1090-073	40	3.52
54	RH1059-002	42	3.88
55	RH1090-074	44	4.26
56	RH1648-018	45.3	4.51
57	RH1370-054	48	5.07
58	RH1165-001	51	5.72
59	RH241-009	52.5	6.06
60	RH2066-001	56.5	6.89
61	RH253-011	59	7.66
62	RH151-017	62.4	8.56
63	RH1574-012	71	11.09
64	RH340-059	75	12.37
65	RH116-054	81	14.43
66	RH47-002	94.15	19.49
67	RH801-070	102	22.88
68	RH534-215	117	30.10
69	RH47-003	130	37.16

Extruded Aluminum Processing Capacity

2. Mold Designing
  RH Group designed and opened dies over 100 thousand aluminum extrusions, including standard aluminum round tubes, aluminum rods, aluminum channels, and etc. RH Group supplies both custom extruded aluminum shapes and standard aluminum shapes, which saves customers’ tooling costs.
2. Raw Materials
  RH Group can process wide range of extrusion alloys for you to choose from, including 2007, 2011, 2014, 2017, 2024, 2618, 2A14, 2A50, 2A70，3003, 3004, 3A21, 4032, 4Y32, 5049, 5052, 5056, 5083, 5754, 5A02, 5A03, 5A05, 5A06, 5A12，6005, 6060, 6061, 6063, 6463, 6101, 6013, 6082, 6066, 6020, 6023, 6026, 6064, 6262，7001, 7003, 7005, 7020, 7021, 7022, 7026, 7046, 7050, 7055, 7068, 7075, 7A03, 7A04, etc.
2. Extruding and Precision Processing
  RH Group is fully equipped with 16 extrusion lines and 180 units of CNC cutting machines, 270 units of CNC machinery tools, etc., able to implement the entire chain through every processing stages, from extrusion die designing, material selection and smelting, aluminum profile extruding, cutting, surface treatment (polishing, brushing, anodizing, electroplating), precision parts processing, assembling, packing and delivering.
2. Quality Control
  RH Group is capable to deliver chemical composition analysis, mechanical properties testing and metallographic analysis towards aluminum profiles. We are equipped with GNR’s OES (Optical Emission Spectrometers) from Italy, ASCONA’s optical profile measuring system from Germany, metalloscope, digital Vickers Hardness Tester, Rockwell apparatus and other advanced testing equipment.

RH Group is a company that has over two decades of expertise in designing and manufacturing aluminum extrusions. We are able to supply both standard aluminum shapes and custom extruded aluminum shapes. Providing premium quality extruded aluminum products is only a part of what we do, we also offer complete turnkey extrusion die design, fabrication and machining services. Our experienced team of extrusion specialists takes great pride in their ability to produce custom aluminum products that are competitive in the market. As an extrusion die designer and extrusion manufacturer, we love what we do and this is our deep passion that leads us to be excellent in the aluminum extrusion market.
