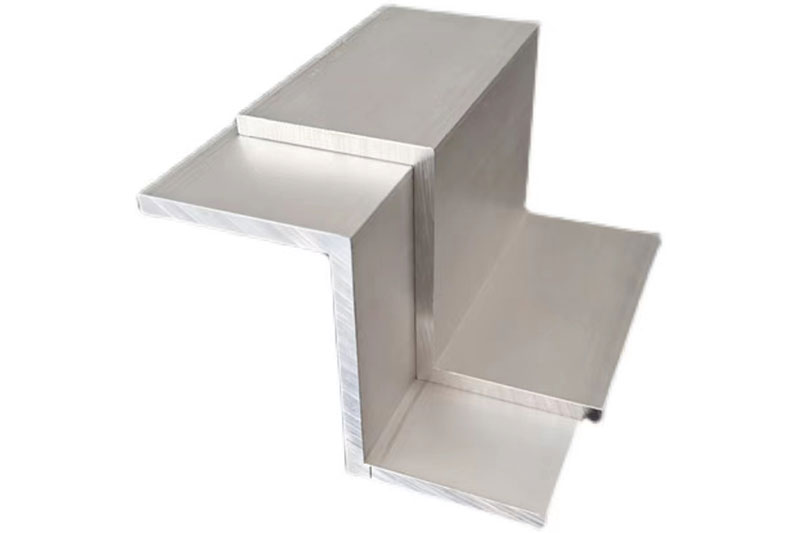

Aluminum Zees

With the experience of producing over 100 thousands aluminum extrusions, RH Group houses an extensive standard shapes die bank for mass production, thus to lower tooling costs. Being an aluminum extrusion manufacturer, RH Group can produce aluminum alloy rods in 2000, 3000, 4000,5000, 6000 and 7000 series, and deliver customized surface treatment and finishing service for our aluminum extrusions used in different applications, such as architecture, industry, electronics.

Quantity of dies: 50sets
CCD (circumscribing circle diameter): ≤250mm

Specifications

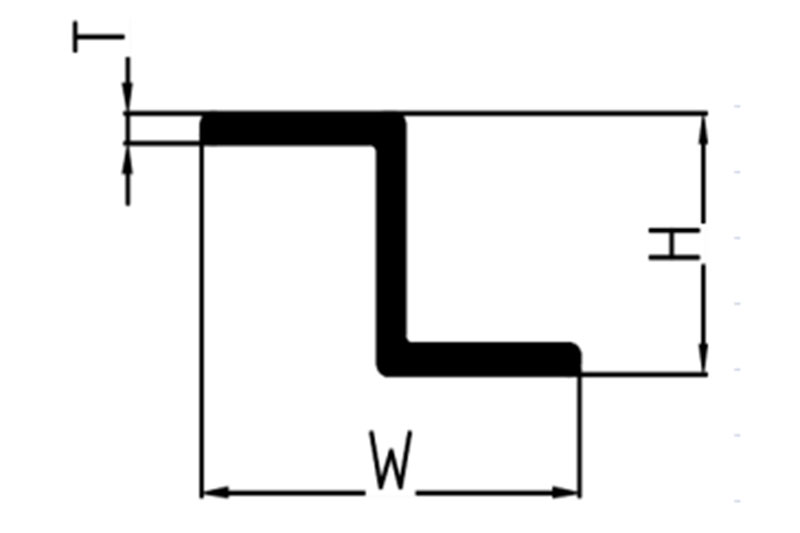

No.	Part Number	Width mm	Height mm	Wall Thickness mm	Weight (kg)
1	RH140-004	50	25	1.5	0.3
2	RH1427-024	104.2	38.1	2.78	1.07
3	RH1524-010	49.5	8.5	2.5	0.39
4	RH1687-005	20	11	3	0.26
5	RH1816-193	17.3	13.4	1.2	0.09
6	RH239-195	78	24.9	2	0.49
7	RH267-026	52.4	14.66	3	0.44
8	RH534-224	39	35.25	5	0.97
9	RH534-225	39	38.25	5	1.01
10	RH551-004	57.15	37.13	10.21	2.29
Customized aluminum zees are available.

Extruded Aluminum Processing Capacity

2. Mold Designing
  RH Group designed and opened dies over 100 thousand aluminum extrusions, including standard aluminum round tubes, aluminum rods, aluminum channels, and etc. RH Group supplies both custom extruded aluminum shapes and standard aluminum shapes, which saves customers’ tooling costs.
2. Raw Materials
  RH Group can process wide range of extrusion alloys for you to choose from, including 2007, 2011, 2014, 2017, 2024, 2618, 2A14, 2A50, 2A70，3003, 3004, 3A21, 4032, 4Y32, 5049, 5052, 5056, 5083, 5754, 5A02, 5A03, 5A05, 5A06, 5A12，6005, 6060, 6061, 6063, 6463, 6101, 6013, 6082, 6066, 6020, 6023, 6026, 6064, 6262，7001, 7003, 7005, 7020, 7021, 7022, 7026, 7046, 7050, 7055, 7068, 7075, 7A03, 7A04, etc.
2. Extruding and Precision Processing
  RH Group is fully equipped with 16 extrusion lines and 180 units of CNC cutting machines, 270 units of CNC machinery tools, etc., able to implement the entire chain through every processing stages, from extrusion die designing, material selection and smelting, aluminum profile extruding, cutting, surface treatment (polishing, brushing, anodizing, electroplating), precision parts processing, assembling, packing and delivering.
2. Quality Control
  RH Group is capable to deliver chemical composition analysis, mechanical properties testing and metallographic analysis towards aluminum profiles. We are equipped with GNR’s OES (Optical Emission Spectrometers) from Italy, ASCONA’s optical profile measuring system from Germany, metalloscope, digital Vickers Hardness Tester, Rockwell apparatus and other advanced testing equipment.

RH Group is a company that has over two decades of expertise in designing and manufacturing aluminum extrusions. We are able to supply both standard aluminum shapes and custom extruded aluminum shapes. Providing premium quality extruded aluminum products is only a part of what we do, we also offer complete turnkey extrusion die design, fabrication and machining services. Our experienced team of extrusion specialists takes great pride in their ability to produce custom aluminum products that are competitive in the market. As an extrusion die designer and extrusion manufacturer, we love what we do and this is our deep passion that leads us to be excellent in the aluminum extrusion market.
