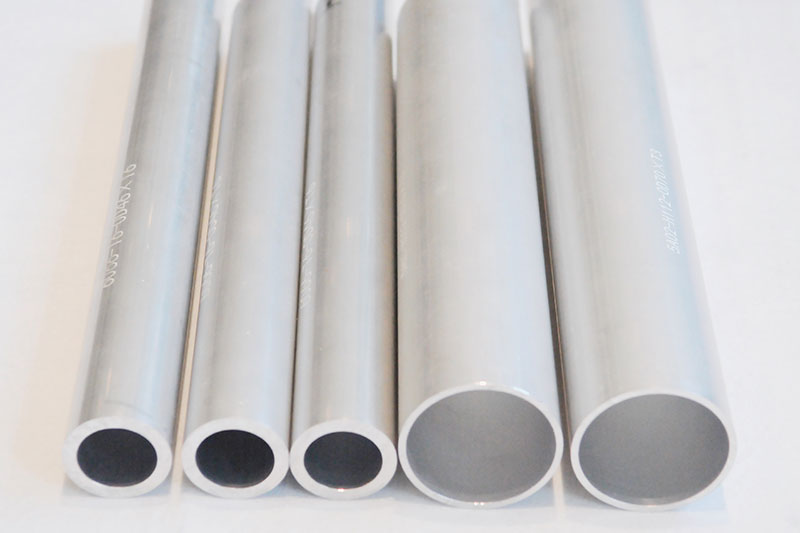

Aluminum Hollows- Aluminum Round Tubes

With the experience of producing over 100 thousands aluminum extrusions, RH Group houses an extensive standard shapes die bank for mass production, thus to lower tooling costs. Being an aluminum extrusion manufacturer, RH Group can produce aluminum alloy rods in 2000, 3000, 4000,5000, 6000 and 7000 series, and deliver customized surface treatment and finishing service for our aluminum extrusions used in different applications, such as architecture, industry, electronics.

  • Quantity of dies: 176 sets
  • CCD (circumscribing circle diameter): ≤210mm
Specifications

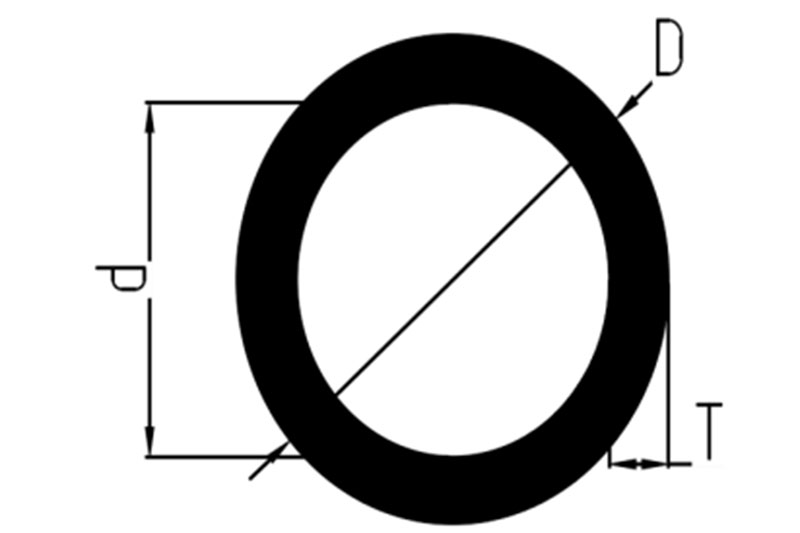

No. Part Number OD mm ID mm Wall Thickness mm Weight kg/m
1
Round Tube-RH148-164
72 60 6 3.42
2
Round Tube-RH2021-013
 54.5 37 8.75 3.46
3
Round Tube-RH245-261
47 42.6 2.2 0.85
4
Round Tube-RH2021-015
 23 9 7 0.97
5
Round Tube-RH2041-004
 66.4 61.8 2.3 1.27
6
Round Tube-RH2021-016
 56 43 6.5 2.78
7
Round Tube-RH2021-017
 44 30 7 2.24
8
Round Tube-RH2021-018
 54 38.4 7.8 3.11
9
Round Tube-RH1974-167
 50.3 40 5.15 2.01
10
Round Tube-RH1648-075
 32.3 29.95 1.17 0.32
Customized aluminum round tubes are available
Extruded Aluminum Processing Capacity
    1. Mold Designing
    2. Mold Designing

      RH Group designed and opened dies over 100 thousand aluminum extrusions, including standard aluminum round tubes, aluminum rods, aluminum channels, and etc. RH Group supplies both custom extruded aluminum shapes and standard aluminum shapes, which saves customers’ tooling costs.

    1. Raw Materials
    2. Raw Materials

      RH Group can process wide range of extrusion alloys for you to choose from, including 2007, 2011, 2014, 2017, 2024, 2618, 2A14, 2A50, 2A70，3003, 3004, 3A21, 4032, 4Y32, 5049, 5052, 5056, 5083, 5754, 5A02, 5A03, 5A05, 5A06, 5A12，6005, 6060, 6061, 6063, 6463, 6101, 6013, 6082, 6066, 6020, 6023, 6026, 6064, 6262，7001, 7003, 7005, 7020, 7021, 7022, 7026, 7046, 7050, 7055, 7068, 7075, 7A03, 7A04, etc.

    1. Extruding and Precision Processing
    2. Extruding and Precision Processing

      RH Group is fully equipped with 16 extrusion lines and 180 units of CNC cutting machines, 270 units of CNC machinery tools, etc., able to implement the entire chain through every processing stages, from extrusion die designing, material selection and smelting, aluminum profile extruding, cutting, surface treatment (polishing, brushing, anodizing, electroplating), precision parts processing, assembling, packing and delivering.

    1. Quality Control
    2. Quality Control

      RH Group is capable to deliver chemical composition analysis, mechanical properties testing and metallographic analysis towards aluminum profiles. We are equipped with GNR’s OES (Optical Emission Spectrometers) from Italy, ASCONA’s optical profile measuring system from Germany, metalloscope, digital Vickers Hardness Tester, Rockwell apparatus and other advanced testing equipment.

RH Group is a company that has over two decades of expertise in designing and manufacturing aluminum extrusions. We are able to supply both standard aluminum shapes and custom extruded aluminum shapes. Providing premium quality extruded aluminum products is only a part of what we do, we also offer complete turnkey extrusion die design, fabrication and machining services. Our experienced team of extrusion specialists takes great pride in their ability to produce custom aluminum products that are competitive in the market. As an extrusion die designer and extrusion manufacturer, we love what we do and this is our deep passion that leads us to be excellent in the aluminum extrusion market.
